Legendary Power
9000-Series Turbocharged Engine

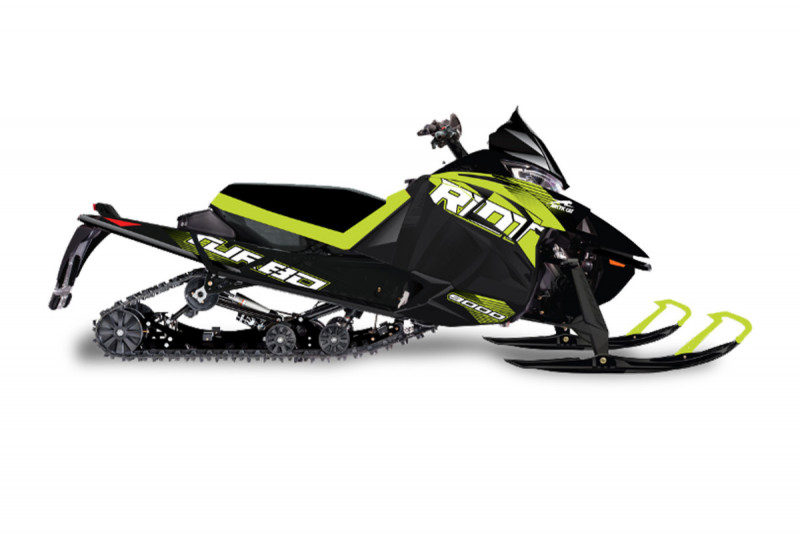

The Riot 9000 doesn't mess around. Equipped with our biggest, most powerful engine, this sled delivers max horsepower in any conditions. The 4-stroke, 998cc engine offers enough power that no other snowmobile will even come close.
9000-Series C-Tec4 Turbocharged Engine
Conquer whatever the terrain throws at you with our biggest, most powerful engine. The 9000-series C-TEC4 turbocharged three-cylinder engine delivers max horsepower in any conditions.
The ultimate 4-stroke powerhouse, it produces 200HP-class performance at 8750 RPM. This 998cc engine features ultra-quick throttle and turbo response from an intercooled turbo, plus a DOHC design that’s matched with 4-hole fuel injectors to create maximum performance with minimal weight.
You also get engine braking control via an idle speed circuit and engine mapping, lightweight aluminum cylinders, and a press forged crankshaft.
Intuitive Handling
Electronic Power Steering
With Electronic Power Steering (EPS), this is a next-level experience. Unmatched control, easier turns, and intuitive handling will upgrade your ride more than you could imagine.
VERSATILE SUSPENSION
ATAC® Adjustable On-The-Fly Suspension
The ATAC Adjustable On-the-Fly Suspension immediately adjusts the FOX® ZERO iQS shocks with the push of a button to navigate changing snow conditions. Choose between two rider profiles, three firmness settings and engage lockout mode to ride your way.
Adjustable On-The-Fly Suspension
Whether you're hitting the trails or exploring the backcountry, you don't know what terrain you're going to face. Now, ATAC® Adjustable On-the-Fly Suspension has you covered. With push-button command of three firmness settings, you can easily adjust the shock settings with just one click. In addition, lockout mode and two individual rider profiles let you dial in the perfect ride faster than ever.
Fox® Zero IQS Shocks
ATAC Adjustable On-the-Fly's FOX® ZERO shocks feature piggyback reservoirs, three compression settings and two custom suspension settings with an electronic control system designed and developed with Arctic Cat Technology.
Three Factory Suspension Settings
Whatever terrain you face, the soft, medium and firm suspension settings guarantee you the perfect ride.
Two Customizable Driver Profiles
Dial in your ride more precisely than ever before with advanced settings that let you fine-tune the ratio of control between the ski shocks and rear track shocks.
ATAC can remember two driver profiles with their own personalized settings.
Digital Display
Get an instant read on which firmness setting you’ve selected — soft, medium or firm — from the digital instrument gauge.
Convenient Push-Button Control
No more getting off your snowmobile to dial in a new compression setting. ATAC makes it easy to shift between suspension settings with just the push of a handlebar-mounted button.
Playful Comfort
Cross-Action Rear Suspension
The uncoupled CROSS-ACTION rear suspension provides unparalleled agility from powder to hardpack. The design enables the front and rear halves of the suspension to move independently, so riders enjoy excellent cornering and bump absorption on the trail, as well as off-trail weight transfer.
Cross-Action Rear Suspension
The CROSS-ACTION skidframe creates a playful ride quality, with more weight transfer during acceleration, great performance in deep snow, and outstanding comfort and traction over big bumps in all snow conditions. Arctic Cat’s Torque-Sensing Link allows a lower and more consistent track tension, plus an adjustable spring preload and a 3-wheel rear axle assembly. The CROSS-ACTION suspension offers 13.5 inches of travel and comes in a 146-inch length with ice-scratchers.
Smooth Power Delivery
Adapt CVT System
With its lightweight, narrow design that increases performance and belt life, as well as the industry's only self-adjusting clutch, the ADAPTT™ CVT system provides better throttle response, smoother power delivery and a ride like no other.
Narrow Design Like No Other
The ADAPT CVT system's narrow design reduces engine strain and improves under hood accessibility, providing a superior experience.
Lightweight and Efficient
With its lightweight design, the ADAPT CVT System decreases rotating mass while giving you improved throttle response and enhanced power delivery.
Consistent Performance
The ADAPT CVT System features an idler bearing that maintains constant belt tension and keeps temperatures down. This offers smoother takeoffs and rides throughout the life of the belt by automatically adjusting to wear.
CONFIDENCE-INSPIRING HANDLING
ARST™ Ii Front Suspension
The race-proven ARS II front suspension delivers superior cornering and more ground clearance for an even better ride - on or off trail. The forged aluminum spindles are 1.5 inches taller from ski to the lower arm, and it features rigid upper A-Arms for optimal control and durability.
ARS™ Ii Front Suspension
The evolution of Arctic Race Suspension (ARS) is here. ARS II gives you better bite on corners and increased ground clearance to deliver more confidence- on or off trail. We made the forged aluminum spindles 1.5 inches taller from the ski to the lower arm, and gave it more rigid upper A-Arms. Plus, a revised geometry delivers a new roll-center and adjustable cambers, and a swaybar makes for flatter, more predictable cornering on hard pack trails.
Stay Warm
Heated Seat
With a standard heated seat, it's easier than ever to stay out on the trails all day long.
Easier Steering
G2 Proclimb Skis
The lightweight G2 ProClimb™ 7-inch mountain ski is tapered to stay on top of the snow. The ski works in tandem with front suspension spindles for easier steering and better deep snow performance.
Adapt to Terrain
Adjustable Ski Stance
An adjustable 41.5- to 43.5-inch ski stance provides the flexibility to ride in a wide variety of snow conditions. Narrow it up for better agility in the backcountry or widen it out for a flatter, more stable trail ride.
Features
9000-Series C-TEC4™ Turbocharged Engine
FOX® iQS Shocks with ATAC
Cobra™ Track
Digital Deluxe Gauge
Power Steering
Unleash the Arctic beast - Riot 9000 with ATAC, where power meets precision!
Specifications
Engine
| Engine Type |
9000 Turbo, 4-Stroke |
| Displacement |
998cc |
| Cooling |
Liquid |
| Cylinders |
3-Turbocharged |
| Bore x Stroke |
80 x 66.2 mm |
| Lubrication |
Dry Sump |
| Ignition |
Digital Controlled Coil Induction |
| Engine Stator Output |
545W @ 5000 RPM |
| Fuel Delivery |
Electronic Fuel Injected (EFI) |
| Exhaust |
Turbocharger w/ Stainless Steel Muffler |
| Fuel Capacity |
9.9 gal |
| Oil |
System Capacity 3.8 qt |
| Coolant System Capacity |
6.4 qt |
| Minimum Octane |
91 |
Powertrain
| Drive Clutch |
ADAPT |
| Driven Clutch |
ADAPT |
| Drive System |
Arctic Drive System |
| Brakes |
Stealth Hydraulic Master Cylinder |
| Clutch Calibration |
0-10,000 ft |
| Gearing |
22/48 |
| Chain Pitch |
90 |
| Track Drive Sprocket |
9 Tooth, 2.86 Pitch, Exvolute |
| Reverse |
Push-Button Engine |
Suspension
| Front Suspension |
ARS II w/ ATAC |
| Ski Shocks |
FOX 1.5 ZERO iQS |
| Sway Bar |
Standard |
| Front Travel |
9 in |
| Rear Suspension |
CROSS-ACTION w/ 3 Wheel Rear Axle Assembly, Torque-Sensing Link Rear Arm, Adjustable Torsion Springs & ATAC System |
| Front Track Shock |
Arctic Cat IFP 1.5 |
| Rear Track Shock |
FOX 2.0 ZERO iQS |
| Rear Travel |
13.5 in |
Dimension
| Overall Chassis Length |
132 in |
| Overall Chassis Width |
48-49 in |
| Overall Chassis Height |
48 in |
| Track Type |
Cobra |
| Track Width |
15 in |
| Track Length |
146 in |
| Lug |
1.35 in |
| Pitch |
2.86 in |
| Ski Stance |
41.5-43.5 in - Adjustable |
| Ski Type/Width |
G2 ProClimb - 7 in |
| Runner Type |
Single Runner w/ Carbide |
Instrumentation
| Type of Gauge |
Deluxe Digital |
| Speedometer |
Digital |
| Tachometer |
Digital |
| Odometer |
Digital |
| Fuel |
Digital |
| Oil |
Indicator Light |
| Coolant |
Digital/Indicator Light |
| Clock |
Digital |
| Battery Voltage |
Digital |
| Altimeter |
Digital |
| Hours |
Digital |
Features
| Color |
Black/Hyper Green |
| Heat Exchanger |
Front/Long Tunnel |
| Starter |
Push-Button Electric Start |
| Handlebars |
Hooked |
| Lighting |
LED w/ Accent Light |
| Seating |
Mountain |
| Standard Accessories |
12V Outlet, Sport Front Bumper, Goggle Holder, Hand & Thumb Warmers, Heated Driver Seat, Ice Scratchers, Rear Storage, Standard Brake Disc, Electronic Power Steering, Tether Switch, Visor Plug-In |
| Windshield |
5.5 in Race Height |
Certain features may require an additional add-on package that may not be included in the retail or sale price. Please contact the dealership for full details.
