Express L6
Built for Adventure
If you’re the type to take the path less traveled— and want to share that with others — the 6-passenger Express L6 is for you. Get great range and go further with two powertrain options — the efficient 13.5-HP closed-loop EFI gas engine or the maintenance-free ELiTE™ lithium battery pack. The Express L6 ELiTE includes enhanced front suspension for better drivability and maneuverability, and an automatic parking brake for peace of mind. Customize your perfect Express L6 and plan your next escape today.
*Price as configured excludes tax, freight & set-up fees.
- Great For: Neighborhood or Community Use, Recreation, Campgrounds, Fishing & Parks, Second Home or Vacation Home
- Starting MSRP: $16,044
- Seats: 6
- Powertrains: ELiTE Lithium | Gas
Express L6 Specifications
Explore the details that make the Express L6 stylish, comfortable, and efficient.
| ELiTE™ Lithium | 13.5 HP Gas Engine | |
|---|---|---|
| Overall Length | 142.8 in (363 cm) | 144 in (364 cm) |
| Overall Width | 50.5 in (129 cm) | 49 in (125 cm) |
| Overall Height (w/o roof) | 50.5 in (129 cm) | 55.5 in (141 cm) |
| Overall Height (w/ roof) | 76.2 in (194 cm) | 83 in (211 cm) |
| Wheel Base | 94.5 in (240 cm) | 97 in (245 cm) |
| Front Wheel Track | 40.2 in (102 cm) | 38.5 in (98 cm) |
| Rear Wheel Track | 41.3 in (105 cm) | 38.5 in (98 cm) |
| Ground Clearance @ Differential | 7.0 in (18 cm) | 7.0 in (18 cm) |
| ELiTE™ Lithium | 13.5 HP Gas Engine | |
|---|---|---|
| Valve Train | N/A | Single Cylinder OHV |
| Motor Type | 56 Volt AC | 4 Cycle 24.5 cu in (401 cc) |
| Fuel System | N/A | Closed-Loop Electronic Fuel Injection |
| Horsepower (KW) | 14.9 hp (11.1 kW) Peak | 13.5 hp (10.1 kW) Exceeds SAE J1940 Std |
| Electrical System | 56 Volt | Starter/Generator – Solid State Regulator |
| Batteries (qty/type) | Two Li-Ion 56 Volt Modules (Standard Configuration) | One, 12 Volt Maintenance Free |
| Key or Pedal Start | Pedal | Pedal |
| Air Cleaner | N/A | Replaceable Dry Cartridge |
| Lubrication | N/A | Pressurized Oil System |
| Oil Filter | N/A | Spin-On |
| Cooling System | N/A | Air Cooled |
| Fuel Capacity | N/A | 5.2 Gallon (19.8 L) Tank |
| Battery Charger | 56.7 V 811W World Charger | N/A |
| Speed Controller | 350 Amp AC | N/A |
| Drivetrain | Motor Shaft Direct Drive | Continuously Variable Transmission (CVT) |
| Transaxle | Clutch-Type Limited Slip Diferential with Helical Gears | Differential with Helical Gears |
| Gear Selection | Dash Mounted Forward-Neutral-Reverse | Forward-Reverse |
| Rear Axle Ratio | 17:1 | 11.47:1 (Forward); 14.35:1 (Reverse) |
| ELiTE™ Lithium | 13.5 HP Gas Engine | |
|---|---|---|
| Seating Capacity | 6-Passenger | 6-Passenger |
| Dry Weight | 1072 lb (486 kg) (without batteries) | 1150 lb (522 kg) (wihtout battery) |
| Curb Weight | 1225 lb (556 kg) | 1190 lb (540 kg) |
| Vehicle Load Capacity | 1153 lb (524 kg) | 1200 lb (544 kg) |
| Turning Radius | 14.4 ft (4.4 m) | 14.4 ft (4.4 m) |
| Outside Clearing Circle | 31 ft (9.4 m) | 25.5 ft (7.8 m) |
| Speed (Level Ground) | 19 mph (31 kph) | 17 mph ± 0.5 mph (26 kph ± 0.8 kph) |
| ELiTE™ Lithium | 13.5 HP Gas Engine | |
|---|---|---|
| Steering | Self-Compensating Rack and Pinion | Self-Compensating Rack and Pinion |
| Suspension | Leaf Springs with Hydraulic Shock Absorbers | Leaf Springs with Hydraulic Shock Absorbers |
| Service Brake | Rear Wheel Mechanical Self-Adjusting Drum | Rear Wheel Mechanical Self-Adjusting Drum |
| Parking Brake | Automatic Electro-Magnetic | Self-Compensating, Single Point Engagement |
| Tires | Kruizer 185/60-14 on SPDR Wheels (Commuter Package), Paramount M/T 23×10-14 on Spartan Wheels (Explorer Package) | Kruizer 185/60-14 on SPDR Wheels (Commuter Package), Paramount M/T 23×10-14 on Spartan Wheels (Explorer Package) |
| ELiTE™ Lithium | 13.5 HP Gas Engine | |
|---|---|---|
| Frame | Welded Steel with Powder-Coat Protection | Welded Steel with Powder-Coat Protection |
| Body & Finish | Injection Molded TPO | Injection Molded TPO |
| Available Body Colors | Black, Electric Blue, Flame Red, Inferno Red, Metallic Charcoal, Ocean Grey, Platinum, Bright White, Slate | Black, Electric Blue, Flame Red, Inferno Red, Metallic Charcoal, Ocean Grey, Platinum, Bright White, Slate |
| Available Seat Colors | Black, Grey on Black, White on Beige | Black, Grey on Black, White on Beige |
| Available Premium Seat Colors | Black, Mushroom, Grey, White | Black, Mushroom, Grey, White |
Express L6 Highlights
Find out more about the features that make the Express L6 your perfect adventure companion.
Modular Canopy
Protect yourself from the elements without sacrificing style. The modular canopy features a sleek design with a built-in water management system and integrated hand grasps.

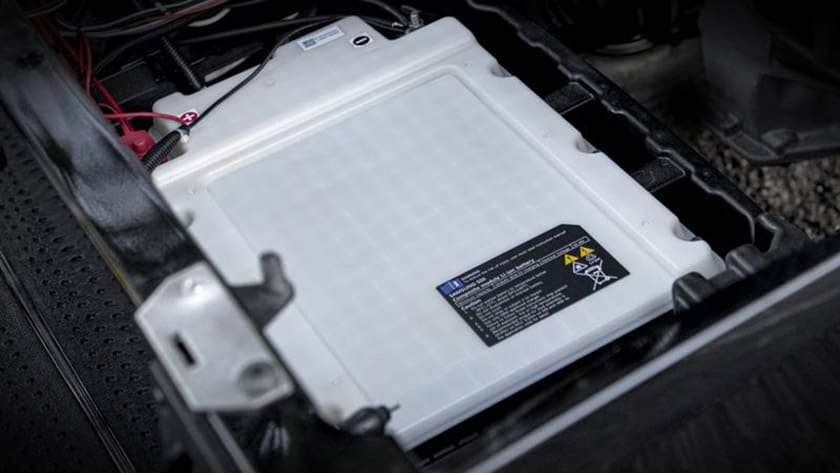

ELiTE™ Lithium Battery Pack Options
Extend your range and choose the battery pack option that makes sense for you. With the 4.2 twin or 6.2 triple maintenance-free ELiTE™ lithium battery pack, you will always be good to go.
Lifted Suspension
Push the limits with lifted suspension, standard on Express L6 vehicles.
Automatic Parking Brake
Now standard on ELiTE vehicles, experience ultimate convenience and safety with an automatic parking brake. Only offered with electric powertrains.
